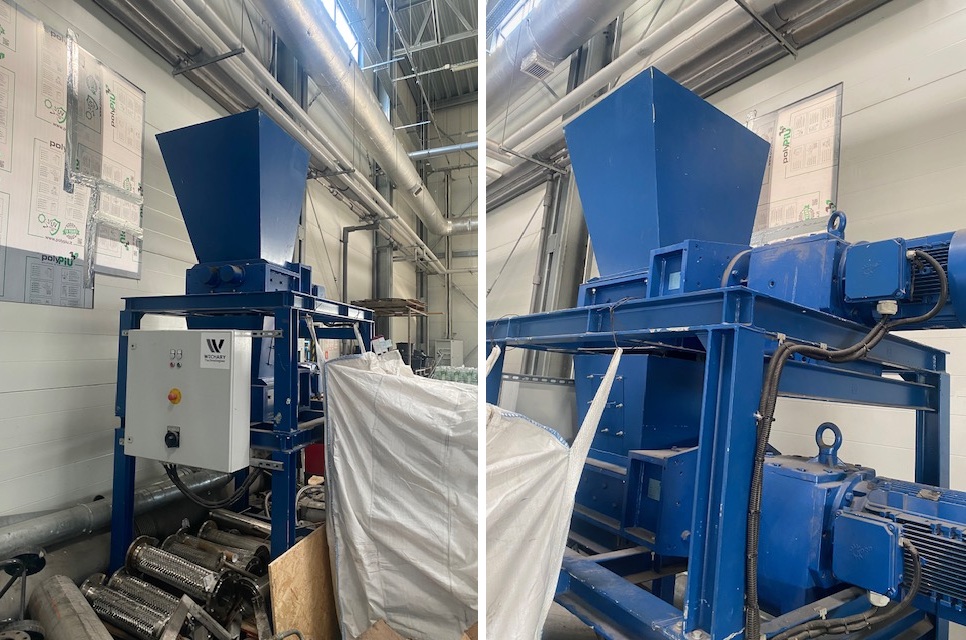

Complete MOCO AZ 11 shredding unit

Complete shredding unit consisting of two twin-shaft shredders MOCO type AZ 11 - pre-shredder and final shredder - together with a dedicated control cabinet. Manufacturer: MOCO Maschinen- u. Apparatebau GmbH & Co. KG, Viernheim, Germany. The set is ideal for processing and recycling plants handling cardboard and aseptic packaging. The unit is barely used, operational, and stored in a heated hall.

1) MOCO AZ 11 pre-shredder
Year of manufacture: 2014
Drive: 15 kW, 1450:37 rpm, direct start
Power supply: 400/690 V - 50 Hz
Protection: IP 65, insulation class F
Shredding chamber: 500 x 500 mm
Knives: 19 mm wide, double
Weight: 950 kg

2) MOCO AZ 11 final shredder
Year of manufacture: 2014
Drive: 22 kW, 1450:53 rpm, direct start
Power supply: 400/690 V - 50 Hz
Protection: IP 55, insulation class F
Shredding chamber: 509 x 500 mm
Knives: 19 mm wide, single
Weight: 1050 kg

Design of both shredders:
The housing and gearbox casing are made of welded steel, stress-relieved to eliminate internal stresses. Bearings with stainless steel plates. Integrated reduction gearbox equipped with oil cooling. Two counter-rotating toothed shafts with knives made of special hardened steel mounted on the shafts - knives are individually replaceable. Two segmented scrapers reinforced with plates. The system includes a feed hopper and support structure.

3) Control cabinet
Control panel compliant with VDE/CE standards, with PLC control (Eaton-Moeller Electric), covering all control components for the shredder drives. Functions: automatic overload-dependent reversing system; filling and level-dependent interlock; motor protection switches; automatic stop after three reversing attempts.
Power supply: 400 V - 50 Hz
Control voltage: 230 V - 50 Hz
Protection: IP 65

Additional information
The set is sold as a complete unit. Inspection and trial start-up on site are possible.
Price of a new unit: EUR 58,000 net.
Location: Toruń
Price: PLN 120,000 net (negotiable)
