Battenfeld HM 300/1300 Injection Molding Machine
No. 135436
- Type of offer:
- Selling
- Available quantity:
- 4 pc
- Condition:
- Second hand
- Year:
- 2014
- Manufacturer:
- Battenfeld
- Clamping force [kN]:
- 3000
- Valid for:
- 5 days
-
- User:
- technikplast
- Company:
- Technikplast Michał Wiśniewski
- Name and surname:
- Michał Wiśniewski
- Contact:
Battenfeld HM 300/1300
Year of manufacture: 2011/2012
Screw diameter: 55 mm
Injection volume: 653 ccm
Injection weight: 489 g
Clamping force: 3000 kN
Space between tie bars: 710 mm
Minimum mould height: 375 mm
Maximum mould height: mm
Max. hydraulic ejector stroke: 370 mm
Mould opening: 1150 - mould height mm
Ejector stroke: 200 mm
Platens: 1020 x 1030 mm
Max. injection speed: 144 ccm/s
Max. injection pressure: 2040 bar
Available: 4 pcs
Shut-off nozzle
Mould Master x 4 - free programming
Other offers of this company:
SCM16 colorant dispenser
~1 045 EUR / pc
MCSe 8 hot runner temperature controller
~1 301 EUR / pc

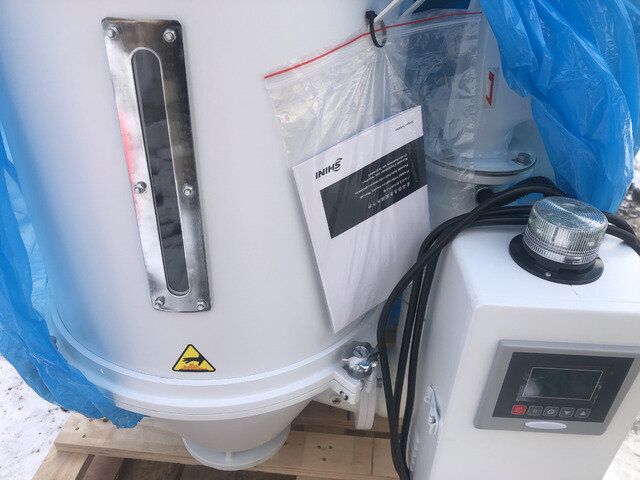

SHD 50 Plastic Dryer
