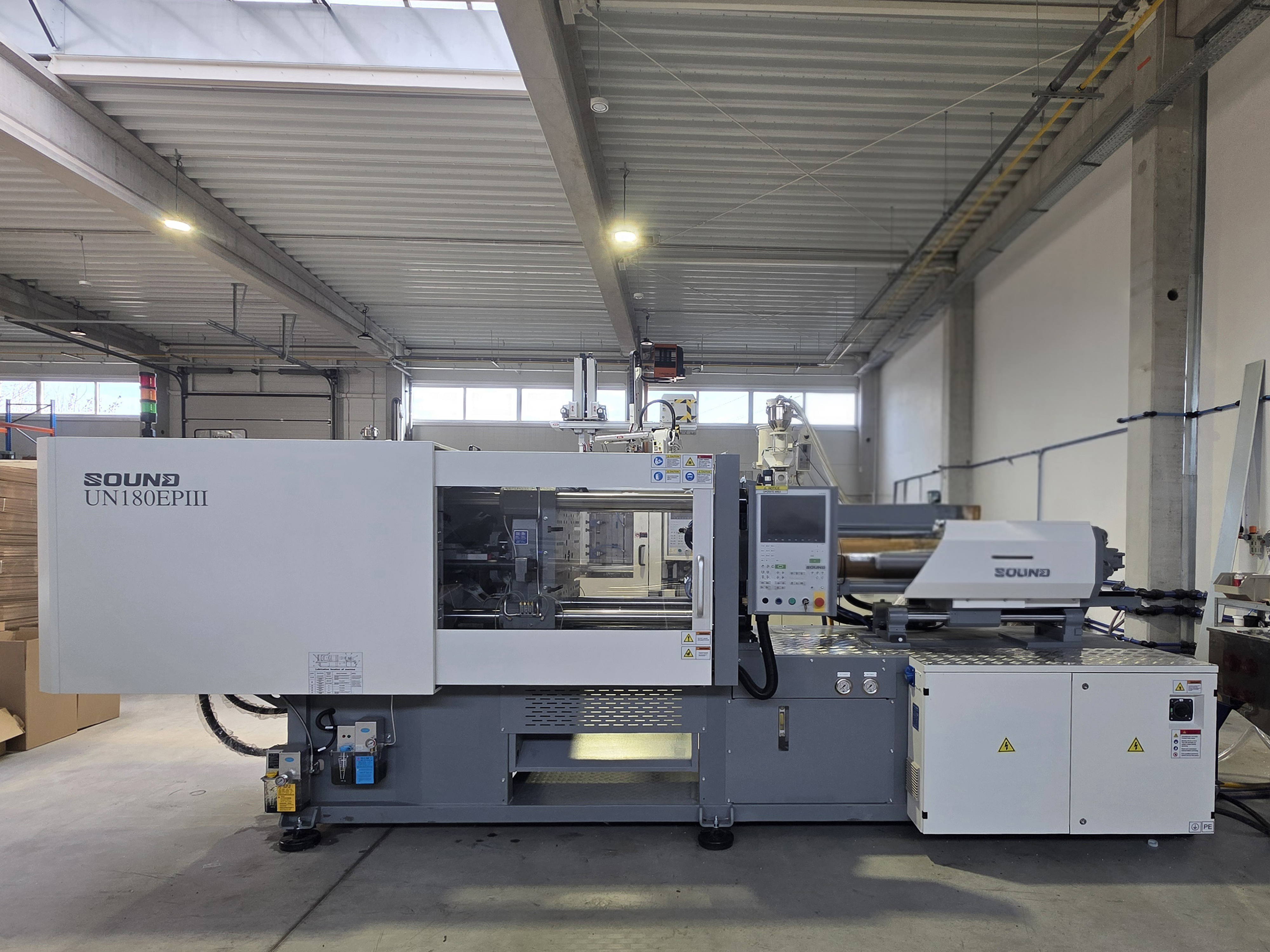

PolandSound UN180Epiii Hydraulic Injection Molding Machine*180ton* Demonstration! Production: 2025
No. 138420
We offer a SOUND UN180 hydraulic injection molding machine from April 2025 – a demo unit with minimal mileage . The machine has been comprehensively tested, fully configured, and is ready for delivery without waiting for production.
Safe purchase – we offer 2 YEARS FULL WARRANTY!
The SOUND UN180EPIII is a powerful and stable hydraulic injection molding machine with a clamping force of 180 tons, designed for precise and repeatable production of plastic parts. Its robust design, reliable hydraulic system, and modern controls ensure smooth operation, energy efficiency, and ease of use.
Key advantages:
- Clamping force: 180 tons
- Year of production: April 2025
- Demonstration machine - minimal run time
- Fully functional, tested and ready to work
- Completely configured
- 2-year warranty
The perfect solution for companies looking for a new machine at an attractive price, without the waiting time for production.
Possibility to view the machine and test run.
INJECTION SYSTEM
Screw diameter: 45 mm
L/D of the screw: 20.0
Injection volume: 358 cm3
Shot Weight (for PS): 326 g / 11.5 oz
Injection pressure: 1763 Bar
Injection flow: 149 cm3/s
Plasticizing capacity: 26.6 g/s
Injection speed: 114 mm/s
Injection stroke: 225 mm
Max. take-up speed: 270 rpm
Screw diameter: 45 mm
L/D of the screw: 20.0
Injection volume: 358 cm3
Shot Weight (for PS): 326 g / 11.5 oz
Injection pressure: 1763 Bar
Injection flow: 149 cm3/s
Plasticizing capacity: 26.6 g/s
Injection speed: 114 mm/s
Injection stroke: 225 mm
Max. take-up speed: 270 rpm
CLOSING SYSTEM
Closing force: 1800 kN
Clearance between columns (H×V): 520×470 mm
Min. mold dimensions (H×V): 380×380 mm
Table opening stroke: 460 mm
Min. mold height: 200 mm
Max. mold height: 550 mm
Max. clearance between boards: 1010 mm
Ejector stroke: 130 mm
Ejector force: kN 49
Number of ejector pins: 5
Closing force: 1800 kN
Clearance between columns (H×V): 520×470 mm
Min. mold dimensions (H×V): 380×380 mm
Table opening stroke: 460 mm
Min. mold height: 200 mm
Max. mold height: 550 mm
Max. clearance between boards: 1010 mm
Ejector stroke: 130 mm
Ejector force: kN 49
Number of ejector pins: 5
POWER SUPPLY
Hydraulic system pressure: 175 Bar
Pump motor power: 18 kW
Cylinder heating capacity: 11.5 kW
GENERAL
Hydraulic system pressure: 175 Bar
Pump motor power: 18 kW
Cylinder heating capacity: 11.5 kW
Oil tank capacity: 200l
Machine dimensions (L×W×H): 5.1×1.3×2.0 m×m×m
Machine weight: 5.5 t
Hopper capacity: 50 kg
Please feel free to contact me.
