Krauss Maffeii KM 120-380 PX

No. 136778
Type of offer::
Selling
Price:
not specified
Condition:
New
Year:
2023
Manufacturer:
Krauss Maffei
Clamping force [kN]:
1200
Valid for:
54 days

User:
pimm_used11
Company:
PIMM-used
Name and surname:
WITOLD MAGRYÚ
Contact:

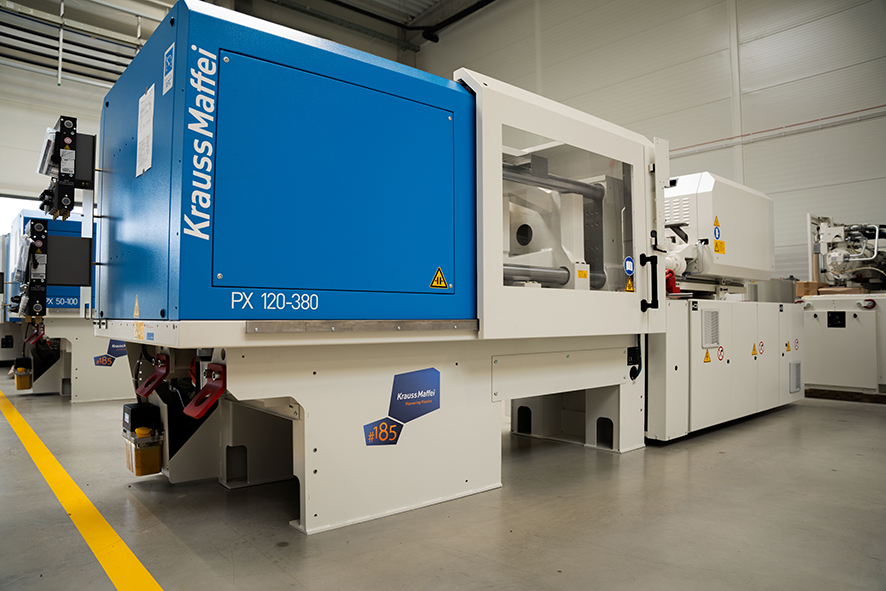

Krauss Maffeii KM 120-380 PX injection molding machine
Year of production: 2023
Fully electric machine
Five-point double lever-knee closing unit mechanism (three-plate unit) with servo-electric drive.
Injection unit with servo-electric drive for injection and plasticization and servo-hydraulic drive for the movement of the entire injection unit.

MC6 control system based on industrial computer in real-time Ethernet technology
Plasticizing system
complete plasticizing system for thermoplastics with a 40 mm diameter HPS-M screw
Nozzle radius 10mm, nozzle hole 4mm
MACHINE TECHNICAL DATA
Closing unit
- Mold clamping force: kN1200
- Mold opening force: kN 180
- Fixing plate dimensions (hxv): mm 640 x 590
- Clearance between columns (hxv):mm 470 x 420
- Mold opening stroke: mm 400
- Mold height min.-max. with option 45.468:mm 180 - 550
- Opening width with option 45.468: mm 950
- Ejector stroke: mm 175
- Ejector force forward/backward: kN 22 / 10
- Ejector speed: mm/s 350
Injection unit
- Screw diameter: mm 40
- Ls/D ratio: - 20
- Injection pressure: bar 1860
- Injection volume: cm3 201
- Injection weight 1): g 183
- Injection speed: mm/s 125
- Injection efficiency:
cm3/s
157
- Number of screw revolutions: 1/min 334
- Plasticization efficiency 1): g/s 24.7
- Torque: Nm 337
- Nozzle pressure force: kN 34
Electrical parameters
- Connection value: kW 13.8
- Security: A 63
- Installed power of heaters: kW 11.5
- Number of cylinder heating zones: - 5
- Dry cycle time / stroke according to Euromap 6 2):s/mm 1.5 / 329
- Oil tank capacity: dm3 120
Weight and dimensions
- Net weight with control cabinet: t 6.9
- Machine dimensions (L x W x H) 3: m 5.3 x 1.60 x 1.88
