Injection molding machine Engel Victory 750/150 TECH

No. 139465

Type of offer::: Selling
Price:: not specified
Condition:: Second hand
Year:: 2004
Manufacturer:: Engel
Clamping force [kN]:: 1500
Total power installed [kW]:: 61
Valid for:: 83 days
User:: tadplast
Company:: P.P.H. TADplast Tadeusz Jędryszczak
Name and surname:: Paulina Łabuzińska
Contact:

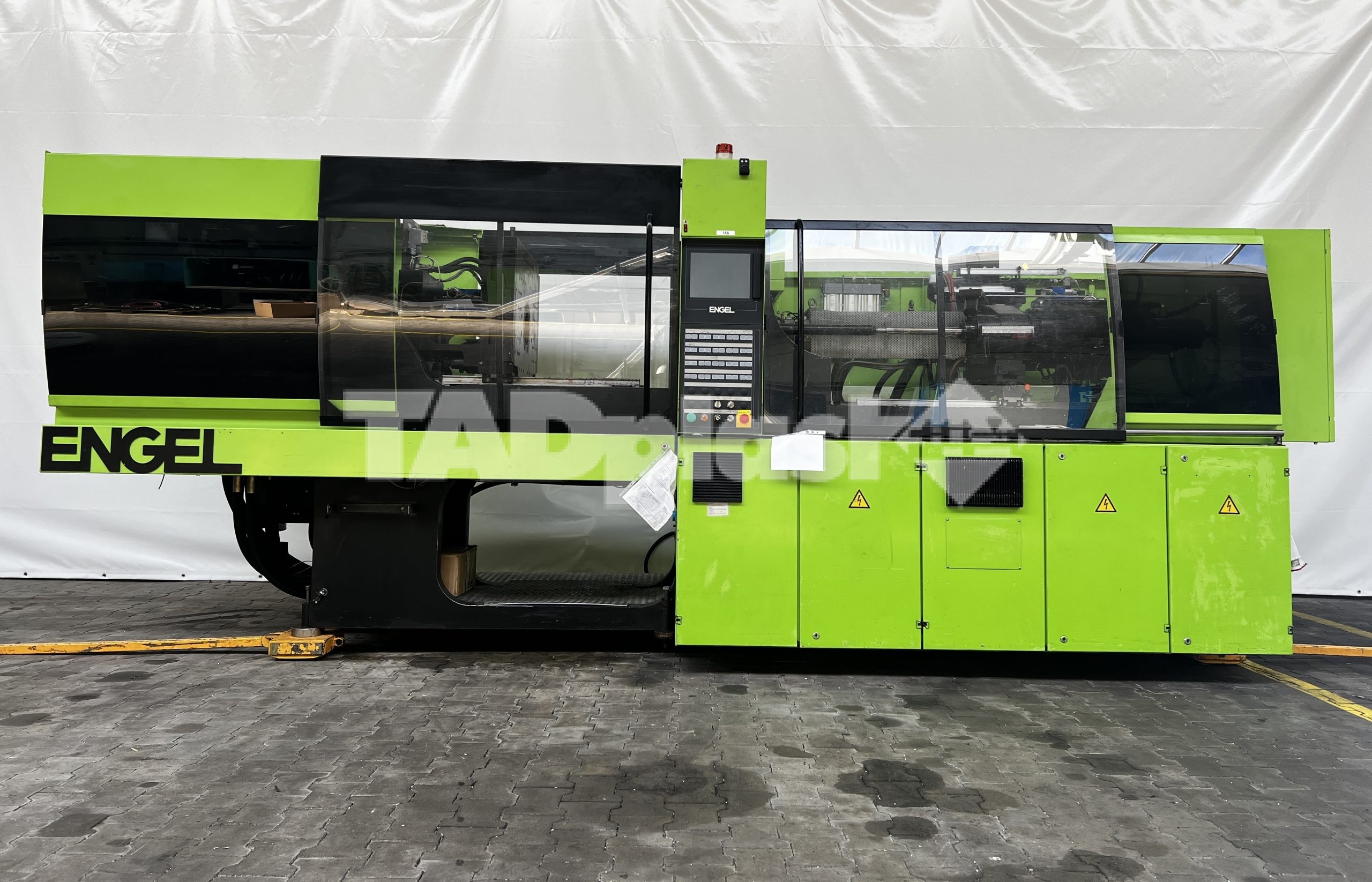

Injection molding machine Engel Victory 750/150 TECH

Manufacturer: Engel
Type: Victory 750/150 TECH
Year of manufacture: 2004
Control system: CC200

Technical data

Screw diameter: 50 mm
Injection volume: 393 ccm
Shot weight: 354 g
Injection pressure: 1427 (1909) bar

Clamping force: 1500 kN
Tie-bar spacing: tie-barless
Platen size: 750 x 850 mm
Opening stroke: 605 mm

General

Installed power: 61 kW
Working hours: 98108 h
Dimensions: 5.7 x 2 m
Weight: 9500 kg

Equipment

Monitor language: German, Hungarian
Operating manual: yes
Core pull: 1x
Robot interface: Euro 12
Without hopper

We perform free trials on our own molds or on the customer's molds.
We offer free loading after sale.
Leasing possible.
Possibility of unloading and commissioning the injection molding machine at the customer's production facility.

We also offer other injection molding machines, peripheral equipment and spare parts.

We offer regeneration of hydraulic pumps for injection molding machines.

Please ознакомьтесь with our offer.
