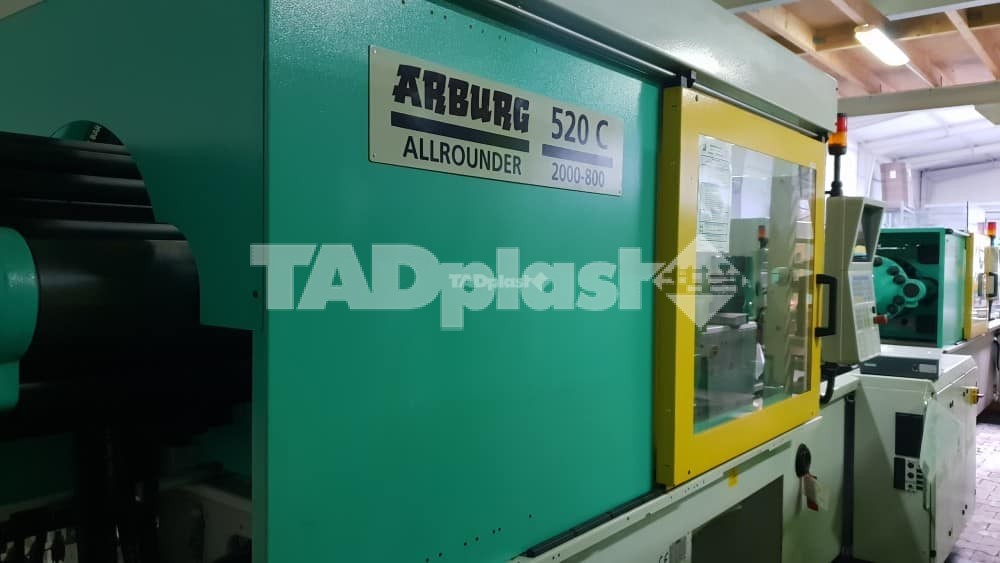

Arburg 520C-2000-800 injection molding machine with conveyor belt

No. 139475

Type of offer::: Selling
Price:: not specified
Condition:: Second hand
Year:: 2005
Manufacturer:: Arburg
Clamping force [kN]:: 2000
Total power installed [kW]:: 44.9
Valid for:: 83 days
User:: tadplast
Company:: P.P.H. TADplast Tadeusz Jędryszczak
Name and surname:: Paulina Łabuzińska
Contact:

Arburg 520C-2000-800 injection molding machine with conveyor belt.

Manufacturer: Arburg
Type: 520C-2000-800
Year of manufacture: 2005
Control system: Selogica

Technical data

Screw diameter: 55 mm
Injection volume: 474 ccm
Shot weight: 434 g
Injection pressure: 1650 bar

Clamping force: 2000 kN
Tie bar spacing: 520 x 520 mm
Platen size: 728 x 728 mm
Min. mold height: 250 mm
Opening stroke: 650 mm
Max. platen daylight: 900 mm

General

Installed power: 44.9 kW
Operating hours: 80 000 h
Dimensions: 6 x 2 m
Weight: 7300 kg

Equipment

Monitor language: German
Operating manual: yes
Core pull: 1x
Robot interface: yes
Hopper loader: no

- We perform free trials using our own molds or the customer's molds.
- We offer free loading after sale.
- Leasing option available.
- Possibility of unloading and commissioning the injection molding machine at the customer's production facility.

We also offer other injection molding machines, peripheral equipment, and spare parts.

We offer hydraulic pump regeneration services for injection molding machines.
