Arburg 470S-1300-350 injection molding machine, hybrid with electric screw drive (170)

No. 139459

Type of offer::: Selling
Price:: not specified
Condition:: Second hand
Year:: 2005
Manufacturer:: Arburg
Clamping force [kN]:: 1300
Total power installed [kW]:: 33.9
Valid for:: 82 days
User:: tadplast
Company:: P.P.H. TADplast Tadeusz Jędryszczak
Name and surname:: Paulina Łabuzińska
Contact:

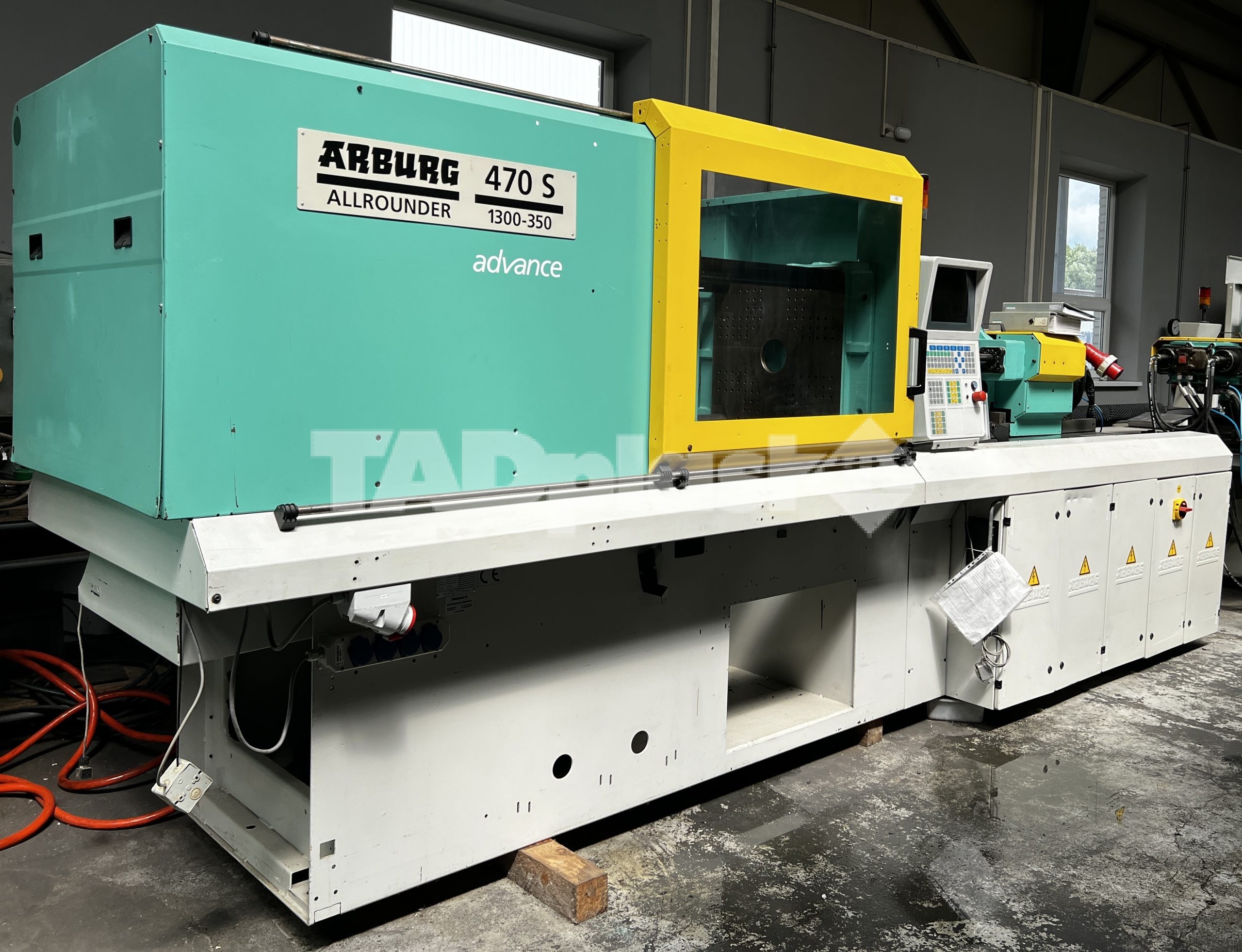

Arburg 470S-1300-350 injection molding machine, hybrid with electric screw drive.

Manufacturer: Arburg
Type: 470 S-1300-350
Year of manufacture: 2005
Control system: Selogica

Technical data

Screw diameter: 35 mm
Shot volume: 139 ccm
Shot weight: 127 g
Injection pressure: 2500 bar

Clamping force: 1300 kN
Tie bar spacing: 470 x 470 mm
Platen size: 650 x 650 mm
Min. mold height: 275 mm
Opening stroke: 575 mm
Max. platen daylight: 850 mm

General

Installed power: 33.9 kW
Working hours: 85 400 h
Dimensions: 5 x 1.8 m
Weight: 5100 kg

Equipment

Monitor language: German
Operating manual: yes
Air valve: 1x
Robot interface: EUR12
Core pulls: 2x
Hopper loader: no

- We perform free trials using our own molds or the customer's molds.
- We offer free loading after sale.
- Leasing available.
- Possibility of unloading and commissioning the injection molding machine at the customer's production facility.

We also offer other injection molding machines, peripheral equipment, and spare parts.

We provide hydraulic pump regeneration services for injection molding machines.

Please ознакомnize yourself with our offer.
