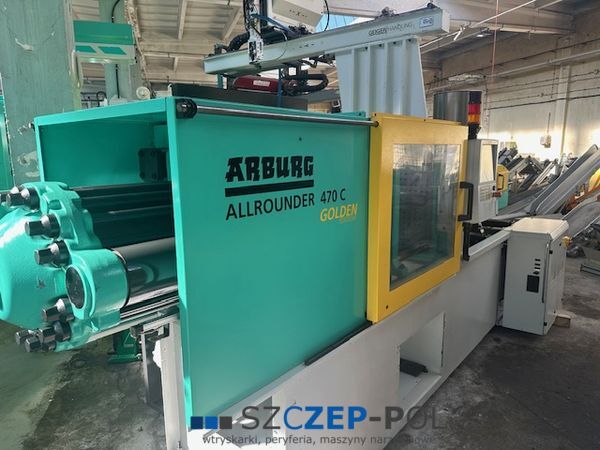

Arburg 470C 1500-400 injection molding machine, 150 tons, 2009

SZCZEP-POL
Sales of injection molding machines and peripherals

Type: Arburg 470C 1500-400
Year of production: 2009

Description:

Injection elements:
Screw diameter: 45 mm
Injection weight: 232 g
Injection pressure: 1580 bar
Injection volume: 254 cc

Closing elements:
Closing force: 150 t
Clearance between columns: 470x470 mm
Table top dimensions max: 650x650 mm
Ejector: hydraulic
Closing system: hydraulic

Control:
SELOGICA - touch (with the possibility of translation into Polish)

Additional equipment:
Core string control
Reinforced injection system - bimetal
It is possible to change the screw diameter

Dimensions:
Weight: 4790 kg
Length/Width/Height: 4.44x1.63x2.09 m

Power supply:
Pump/Motor: 18.5 kW
Heaters: 9.4 kW
Total: 27.9 kW

Price: upon request

We invite you to see the machine in operation in Łódź.
Our offer includes all additional peripheral devices necessary to create a production line, as well as tool machines.
We are a leading European supplier of used plastics processing machines: injection molding machines and peripherals, and tooling machines.
All devices offered by our company are located in our warehouses in Łódź.

Possibility of LEASING! At the client's request, we can help organize leasing in a simplified form, through leasing companies with which we cooperate.
FREE: training in the operation of the selected machine
FREE: loading of devices after sale
