Arburg 420C-1000-350 Injection Molding Machine (174)

No. 139457

Type of offer::: Selling
Price:: not specified
Condition:: Second hand
Year:: 2001
Manufacturer:: Arburg
Clamping force [kN]:: 1000
Total power installed [kW]:: 32.2
Valid for:: 82 days
User:: tadplast
Company:: P.P.H. TADplast Tadeusz Jędryszczak
Name and surname:: Paulina Łabuzińska
Contact:

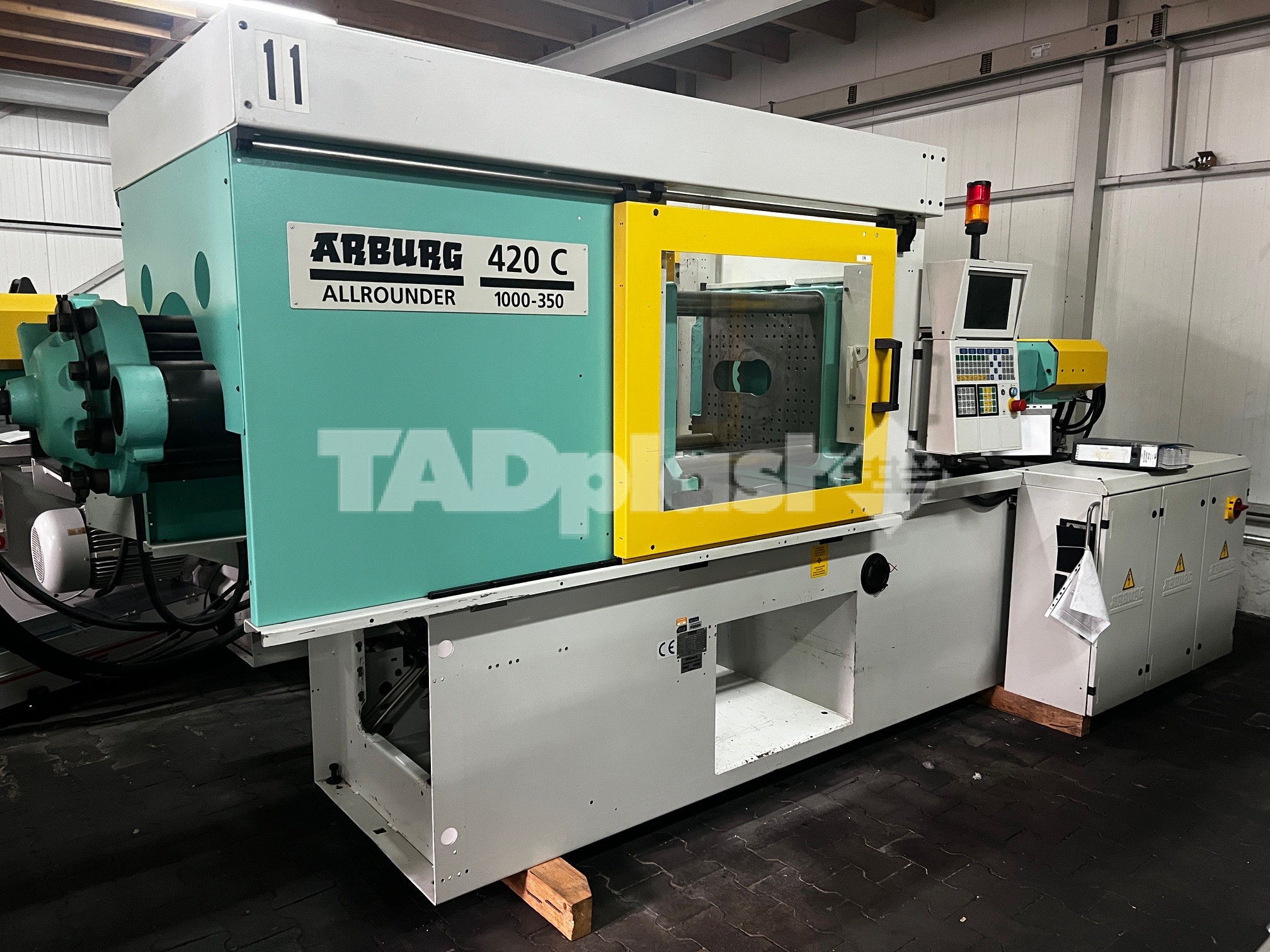

Arburg 420C-1000-350

Manufacturer: Arburg
Type: 420C-1000-350
Year of manufacture: 2001
Control system: Selogica

Technical data
Screw diameter: 45 mm
Injection volume: 230 ccm
Shot weight: 210 g
Injection pressure: 1670 bar

Clamping force: 1000 kN
Tie bar spacing: 420x420 mm
Platen size: 570x570 mm
Min. mold height: 250 mm
Opening stroke: 500 mm
Max. platen spacing: 750 mm

General
Installed power: 32.2 kW
Operating hours: 89,240 h
Dimensions: 4.4 x 1.7 m
Weight: 3430 kg

Equipment
Monitor language: German
Operating manual: yes
Core pull: 1x
Air valve: 1x
Robot interface: Euro12
Hopper loader: no

Sold without conveyor belt.

We carry out free trials on our own molds or on the customer's molds.
We offer free loading after sale.
Leasing option available.
Possibility of unloading and commissioning the injection molding machine at the customer's production facility.

We also have other injection molding machines, peripheral equipment, and spare parts.

We offer hydraulic pump regeneration services for injection molding machines.

Please ознакомиться with our offer.
