No. 107509

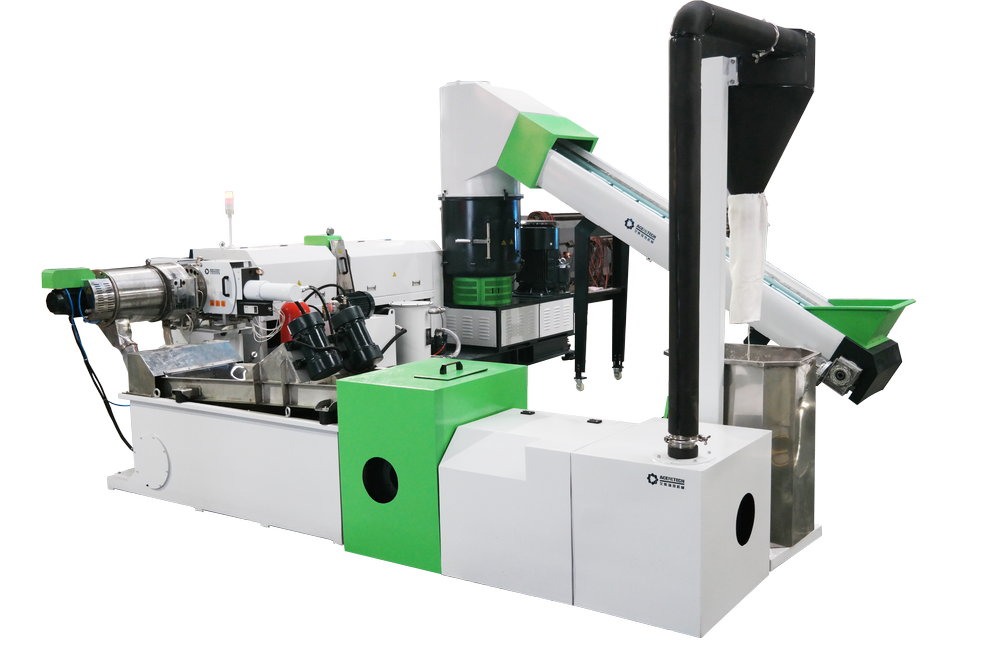

Design: ACS100 single screw extruder and water ring pelletizing machine
|
Raw material and formula
|
jumbo bag / big bag / woven bag / foil waste / Rigid plastic scraps
|
final product
|
PE pellet, round shape diameter: 3~5mm
|
output capacity
|
300~380kg/h, depending on film moisture condition
|
Central height
|
1 m
|
1. General information
1.1 Floor area
foundation construction, construction work, earthworks and wall work;
Supply of cranes, forklifts or other lifting equipment; Assembly materials and tools;
Surface dimensions: to be designed according to the linear layout
1.2 Power
Installed power: ~234KW
Power Supply:
Supply voltage: 3*380V+N+PE;
Voltage tolerance: +10% / -5%;
Control voltage: 24VDC + 220VAC;
Frequency: 50Hz + -2%
Wire/Cables:
- Wires/cables from the power supply to the control cabinet of this washing line (to be provided by the customer);
- All electrical cables from the control cabinet to each machine (customer to provide);
1.3 Process industrial water
Consumption: 2T/h (Proposed water treatment project)
cooling water:
No dissolved or suspended minerals such as phosphorus, sulfur, iron, etc.
Supply temperature T1: max. 15℃
Outlet temperature T2: T2=T1+5℃
Inlet pressure min: 2.5 bar
Hardness: 5-8ºdH;
Reflux: no pressure
Hydrant:
Water supply to machines and pools (provided by the customer);
1.4 Compressed air
Consumption: 0.6M3 /min, 0.4~0.7MPa
1.5 Operational staff
2 people
1.6 Lubricating oil
Local market industry application (customer provided);
2. Terms and Conditions
2.1 Machine list and unit price
Item 1
|
belt conveyor
|
1 set
|
|
|
Metal detector (optional item)
|
1 set
|
|
Item 2
|
AC800 Agglomerator / Compactor
(with inverter)
(with a servomotor controlled sliding gate)
|
1 set
|
|
Item 3
|
Single screw extruder ACS 100/36
|
1 set
|
Item 4
|
Hydraulic screen changer
|
1 set
|
|
Item 5
|
Water ring granulation system
|
1 set
|
|
Item 6
|
Electrical control cabinet (PLC)
GEFRAN Pressure Sensor Italy
Permanent relay (optional item)
|
1 set
1 set
1 set
|
|
